Introduction

Build your own super smart display with Raspberry Pi and archspee. It is Highly modularized and customizable voice assistant platform for Raspberry Pi.

Highlights

• Super easy to integrate with other services (hotword detection, STT, NLU, input / presentation modules, etc.)
• Super easy to create your own hotword trigger (based on Snowboy) or from any input.
• Super easy to handle multiple-purpose scenario:
  • Register different trigger to different service / handler for different purposes.
  • Split your different scenario to different NLU application to manage them with ease.
• Super easy to extend (add your own NLU rules and add / extend handler module or just add new intent script files)
  • It's possible to also integrate Google Assistant, Alexa, or BOTH at the same time.
• Designed for smart display scenario in mind:
  • Providing visual feedback presentation module for notification icon, notification bubbles and activity graphics
  • Providing a default application to use YouTube TV and perform some device operations with voice

Prerequisites

1. It is strongly recommended to use Raspberry Pi 3 B+ model. (archspee is only tested on RPI3B+)
2. You need to have an external microphone to your Raspberry Pi unit to receive audio input. You can use any of the following components / kits:
   • USB microphone or sound card
   • External microphone HAT
   • AIY Voice Kit
3. You can use to an HDMI external monitor or any display component, including DSI display (Offical 7" Touchscreen Display), or SPI display.
   • SPI display basically has low refresh rates. To improve the performance, you can check the fbcp-ili9341 project and see if it helps.
4. It basically works with the chromium-browser browser which is shipped in Raspbian image, however it is recommended to use Puffin Internet Terminal for better web browsing performance (Refer to Install Puffin Internet Terminal section)

Default Application

This is the appication which the author actually uses in his daily life. Anyone can easily modify / extend the application following the steps in Customization section. It includes 2 scenarios.

• Browse YouTube TV website (same website which Firefox TV uses) / Neverthink website
  • Speak Snowboy hotword and issue the following command:
    • Move (Down|Up|Left|Right) [number] times
    • Select (the current focused item)
    • Search [query]
    • (After search) Select (first|second|...) result
    • Pause the video / Resume playing
    • Go back
    • Seek (forward|back) [number] seconds
    • Give me some random [topic] videos: Opens a new tab to Neverthink and play the specified topic channel.
• Perform device action
  • Speak Alexa hotword and issue the following command:
    • Show me the IP: Open a terminal window and show network interface IP addresses for 10 seconds
    • Wakeup: Exit the blank screensaver
    • Turn (on|off) the blacklight (only effective for system with DSI/SPI display)

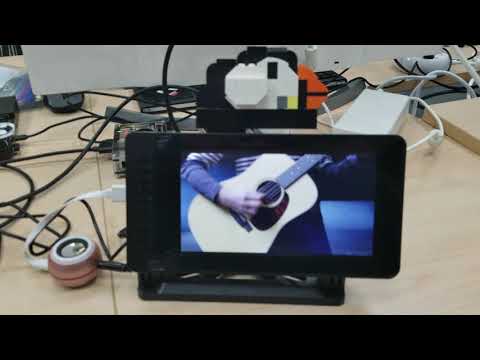

Click the following image to watch the demo video:

(Note that the current released Puffin Internet Terminal does not have the fullscreen feature yet. The demo below is using an development build.)

Installation

1. Clone the repository: git clone https://github.com/wangpy/archspee
2. Enter the repository: cd archspee/
3. Execute Installation script: ./install.sh
4. Done! Continue to the Configuration section to setup your device correctly before you can start using archspee.

Configuration

Install Puffin Internet Terminal

Puffin Internet Terminal is a fast web browser on Raspberry Pi. Actually it is the only usable web browser to general Internet. You can still use the chromium-browser which is shipped in official Raspbian image but the performance is barely acceptable.

The default configuration file launches Puffin Internet Terminal to browse websites. If you want to use chromium instead, you need to modify the configuration file.

You can install Puffin Internet Terminal by either of the two ways:

• Using prebuilt Raspbian system image
• Downloading Debian package file and installing manually

NOTE if your Raspberry Pi system has DSI/SPI display:

• Before installation, make sure you connect to an external HDMI monitor before you boot Raspberry Pi or you might not be able to continue the process. (This is due to the default GL Driver settings of the image)
• After installation of Puffin Internet Terminal, you need to make follow the steps to change GL driver to Fake KMS to let the DSI/SPI display work correctly.

Using Prebuilt Raspbian System Image

1. Follow the instruction on official website to download and flash the image to the SD card.
2. Boot Raspberry Pi with the SD card and complete the setup wizard.
3. Follow the Installation steps to install archspee on the system.
4. (Only for system with DSI/SPI display) Follow the steps to set GL Driver to Fake KMS.

Downloading Debian Package File and Installing Manually

1. Download the Debian package from the official website.
2. Apply the following configuration change using raspi-config
   1. sudo raspi-config
   2. Go to Advanced options > GL Driver and select G1 GL (Full KMS).
   3. modify CMA settings to 384M by adding cma=384M in /boot/cmdline.txt.
   4. Exit the Configuration Tool and reboot.
3. Install the Debian package: sudo dpkg -i puffin-internet-terminal-demo_7.7.x-dev_armhf.deb (Change the file name according to your actual downloaded file)
4. (Only for system with DSI/SPI display) Follow the steps to set GL Driver to Fake KMS.

Set GL Driver to Fake KMS

This part is only necessary for system with DSI/SPI display because they need dispmanx interface to work, and Full KMS GL Driver does not have provide the interface.

1. sudo raspi-config
2. Go to Advanced options > GL Driver and select G2 GL (Fake KMS).
3. Exit the Configuration Tool and reboot.

Configure and Test the Audio

You need to make sure you have configured your audio devices correctly to use archspee. The following instruction in this part is cited from Google Assistant Library Documentaion.

1. Find your recording and playback devices.

   1. Locate your USB microphone in the list of capture hardware devices. Write down the card number and device number.

      arecord -l


   2. Locate your speaker in the list of playback hardware devices. Write down the card number and device number. Note that the 3.5mm-jack is typically labeled Analog or bcm2835 ALSA (not bcm2835 IEC958/HDMI).

      aplay -l


2. Create a new file named .asoundrc in the home directory (/home/pi). Make sure it has the right slave definitions for microphone and speaker; use the configuration below but replace <card number> and <device number> with the numbers you wrote down in the previous step. Do this for both pcm.mic and pcm.speaker.

   pcm.!default  { type asym
     capture.pcm "mic" playback.pcm "speaker"
   }
   pcm.mic { type plug
     slave { pcm "hw:<card number>,<device number>"  }
   }
   pcm.speaker { type plug
     slave { pcm "hw:<card number>,<device number>"  }
   }


3. Verify that recording and playback work:

   1. Adjust the playback volume.

      alsamixer


      Press the up arrow key to set the playback volume level to around 70.

   2. Play a test sound (this will be a person speaking). Press Ctrl+C when done. If you don't hear anything when you run this, check your speaker connection.

      speaker-test -t wav


   3. Record a short audio clip.

      arecord --format=S16_LE --duration=5 --rate=16000 --file-type=raw out.raw


   4. Check the recording by replaying it. If you don't hear anything, you may need to check the recording volume in alsamixer.

      aplay --format=S16_LE --rate=16000 out.raw


   If recording and playback are working, then you are done configuring audio. If not, check that the microphone and speaker are properly connected. If this is not the issue, then try a different microphone or speaker.

   Note that if you have both an HDMI monitor and a 3.5mm jack speaker connected, you can play audio out of either one. Run the following command:

   sudo raspi-config


   Go to Advanced options > Audio and select the desired output device.

Execution

• Launch archspee manually:
  1. Enter the repository: cd archspee/
  2. Execute run script: ./run.sh
  3. For default application, you should see the browser launches and an notification in taskbar.
  4. Try the voice commands listed in default application section.
  5. If it does not work, refer to troubleshooting section.
• Install the systemd service to launch archspee on boot:
  1. Execute service installer script: scripts/service_installer.sh
  2. To uninstall, run the service uninstaller script: scripts/service_uninstaller.sh

Troubleshooting

• Unable to launch archspee or not seeing the notification icon or the browser window.
  • Ensure no other program is using the microphone (verify your audio works by checking the steps in Configure and Test the Audio section).
  • Typically you need to be in desktop environment to use archspee. (However it can still be customized to be voice only assistant by removing GtkAppIndicatorPresenter and BrowserYouTubeTVHandler which needs desktop environment)
• No response to the voice commands.
  • Verify your audio works by checking the steps in Configure and Test the Audio section.
  • Maybe Snowboy is not picking up your hotword. You can verify your assigned hotword model works by checking the steps in Change or add your own hotwords section.
• The hotword triggered, The action is not triggered after receiving the voice command.
  • Check your trigger ID is assigned in by all the components so your voice command can go through the full flow with the trigger ID. (Refer to Designing Scenarios section for detail)
  • If you have set up archspee by system service, you can stop the service and run archspee manually and check the log output:
    • sudo systemctl stop archspee.service
    • cd \<archspee_path\>; ./run.sh
    • To restart: sudo systemctl start archspee.service

Customization

Customization can be easily made by putting custom configuration and modules into custom directory:

1. Copy from default configuration files:
   cp archspee/default_config.py custom/config.py
2. (Optional) Change or add your own hotwords or add additional trigger methods (push button, etc)
3. (Optional) Add additional status indicators (presenters)
4. (Optional) Add your own action and Intent Script to perform device action
5. (Optional) Integrate with other STT or NLU service
6. (Optional) For further customization / extension, refer to the architecture section

Change or Add Your Own Hotwords

Snowboy provides several hotwords as "universal models" which you can utilize: Snowboy, Alexa, Jarvis and Smart Mirror. You can refer to Snowboy documentation for details. These universal models are included in this repository in third_party/snowboy/resources directory.

If you want to train your own hotword, you can train a personal model for it with the following steps:

1. Register an account on Snowboy website and get your API key on user profile page (as documented here)
2. Train a personal model using Snowboy API:
   SNOWBOY_API_TOKEN=<TOKEN> env/bin/python scripts/train_snowboy_model.py out.pmdl
   (Change the <TOKEN> to your Snowboy API token)
3. Test your personal model:
   PYTHONPATH=$PWD:$PWD/third_party/snowboy env/bin/python scripts/test_snowboy_model.py
4. Move the out.pmdl to custom folder and rename.
5. Modify custom/config.py to replace the hotword you want to replace in decoder_model list to yours in SnowboyTrigger settings.

However please note the personal models are much less solid in terms of detection accuracy and portability to different environment, and is not valid to be invoked across different users. We suggest you train the personal model with the following tips in mind:

• It's better to choose a hotword with at 3 or more syllables
• If your device is put to a new environment (placed in another room, or microphone used, or device placement / relative position with speaker changed dramatically, etc.), we suggest you to retrain the model for the new environment.

Add Additional Trigger Methods

1. GpioButtonTrigger GPIO (push button) trigger
   1. Uncomment GpioButtonTrigger item in TRIGGERS list.
   2. Change the gpio_pins value according to your system.
2. You can write your own trigger by subclassing archspee.triggers.TriggerBase class.

Add Additional Status Indicators (Presenters)

1. PixelPresenter: Pixel (LED)
   1. Modify custom/config.py and uncomment the commented items in PRESENTERS list according to your need.
   2. The default PixelPresenter is for ReSpeaker 2-mic HAT. You can copy archspee/presenters/pixels.py to custom folder, modify the code and change the class name to custom.pixels.PixelsPresenter in the item.
2. You can write your own presenter by subclassing archspee.presenters.PresenterBase class.

Add your Own Action and Intent Script to Perform Device Action

The default application is using Wit.ai to perform natural language understanding. The Wit app data is exported and put in the repository. You can get the app data and import in your own Wit app to extend it.

1. Get the exported app data zip file here.
2. Create an app in Wit.ai and import the app data zip file above.
3. You can train the app to understand new intent values. (Refer to the official getting started guide and the tutorials to understand how to do it)
4. Put a script [new_intent_value].sh in intent_scripts folder.
5. Modify the access_token of WitInterpreter in custom/config.py to the token of your created app.
6. Test it! You can utilize the INBOX feature in Wit.ai console to train the app from the command you issue.

Integrate with other STT or NLU service

There are many services we can utilize to perform STT (speech to text) and NLU (natural language understanding). The following services are supported in archspee:

• Wit.ai for STT & NLU in multiple languages
• speech_recognition module for STT (which utilizes different services)
• OLAMI for STT & NLU in Chinese

It's possible to integrate Google Assistant, Alexa or other voice assistant library / service / API into archspee:

• You can write your own recognizer by subclassing archspee.recognizers.RecognizerBase class to integrate the service which performs STT (and perhaps also NLU) - Speech to Text or Speech to Intent
• You can write your own interpreter by subclassing archspee.interpreters.InterpreterBase class to integrate the service which performs NLU - Text to Intent

archspee Architecture

archspee is designed to be highly modularized and highly customizable so anyone can:

• Swap different modules to compare performance or across different scenarios.
• Split different scanarios to different NLU applications so it's easy to building a new voice assistant from several "building-blocks" NLU applications.

Key / Built-in Components

• ArchspeeMain - main class of archspee which loads config and utilize all components to perform voice assistant jobs.
• Listener - the audio frontend to process audio input and perform VAD (voice activity detection)
  • AlsaPortAudioListener - audio frontend with portaudio API and VAD (same algorithm from python speech_recognition module)
• Trigger - detects trigger from audio input (hotword) or other input. Other Hotword Detection solution can be integrated as a trigger module.
  • SnowboyTrigger - audio hotword trigger using Snowboy
  • GpioButtonTrigger - physical button trigger via GPIO
• Presenter - presents visual feedback on screen or on any output device (and can also receive action from UI)
  • GtkAppIndicatorPresenter - show notification on taskbar, display notification balloons and activity graphics.
  • AudioPresenter - to lower volume when active (can also play sound effects here)
  • PixelsPresenter - control LEDs on various HATs with RGB LEDs
• Recognizer - accepts speech audio input and perform STT (speech-to-text) or STT+NLU (speech-to-intent)
  • WitRecognizer - use Wit.ai to perform STT+NLU (/speech API)
  • OlamiRecognizer - use to OLAMI perform STT+NLU (ASR+NLI)
  • GoogleSpeechRecognizer - use recognize_google() in speech_recognition module to perform STT
• Interpreter - accepts natural langage text input and performs NLU (text-to-intent)
  • WitInterpreter - use Wit.ai to perform NLU (/message API)
  • OlamiRecognizer use to OLAMI perform NLU (NLI)
• Handler - perform action from intent and entities.
  • BrowserYouTubeTVIntentHandler - launches web browser and perform various action according to intents.
  • ScriptsIntentHandler - execute script file with the name for the respective intent in intent_scripts directory.

Designing Scenarios

When designing the scenarios you want to provide the actions for, each scenario can be assigned a unique trigger ID so they can be processed by designated Recognizer, (maybe also Interpreter if the recognizer only performs STT) and Handler. Take the default application as example:

• SnowboyTrigger emits trigger ID 1 via Snowboy hotword -> WitRecognizer -> BrowserYouTubeTVIntentHandler
• SnowboyTrigger emits trigger ID 2 via Alexa hotword -> GoogleSpeechRecognizer -> WitInterpreter -> ScriptsIntentHandler

Note that the trigger ID is not exclusively bound between each connection:

• Different Triggers can emit same trigger ID.
  • For example, we can let a trigger ID get emitted by a hotword and also a push button.
• The same natural text input recognizerd by the same Recognizer (in the same trigger ID) can be sent to multiple Interpreters.
  • This makes the separation of NLU apps for different scanarios possible and easy to integrate in the same flow (same trigger ID).
• The intent / entities data from same trigger ID after STT and NLU can be processed by multiple Handlers at the same time. This enables the possibility to map multiple handlers from the same trigger, but normally each different intent values should be handled by only one of the handlers.
  • For example, an NLU which generate intents for multiple purposes, we can let multiple handlers receive the same intent / entities data and see if any one of them handles it.

This gives maximum flexibility to combine modules to build for different multi-purposed scenarios.
