Source code and help for Spider gbXML Viewers included with NREL's OpenStudio program.
The following files are a work-in-progress and not yet available in a working version of OpenStudio.
- File: embeddable_gbxml_editor.html
- Nothing happens when you load this file because init() and animate() required by Three.js are disabled so they may first called by the app doing the hosting - in this case from within OpenStudio.
This file is living proof that the Spider code is viable in workflows based on mature and complex systems.
- Load gbXML files in a speedy fashion
- Display in real-time interactive 3D
- Click on a surface to view a subset of its data
- Adjust opacity and reset to home view
- Toggle
- Rotation
- Wireframe view
- Axes
- Bounding box
- Edges
- View file statistics
- Sliding menu
In order to test "embeddable_gbxml_editor.html" files with OpenStudio, copy a file into the bin folder of your OpenStudio installation. Start a new session and the file will appear the next time you invoke the gbXML Viewer from the geometry tab.
See the OpenStudio Advanced Tutorial Working with gbXML for more details.
- Lots of fun here

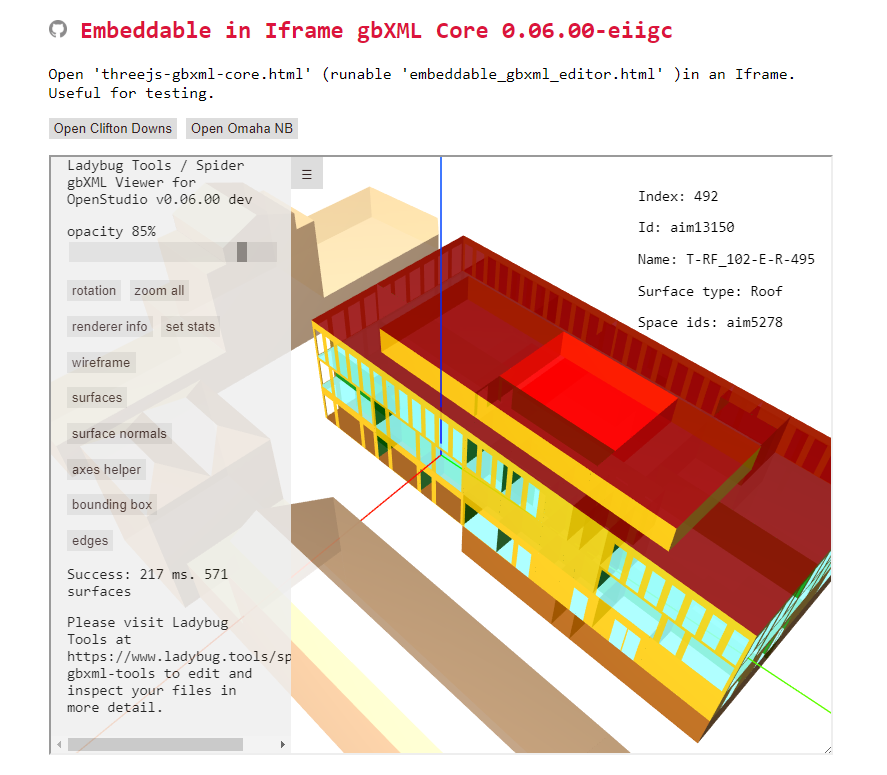

- Popup viewer embedded in an Iframe
- Allows you to test the runnable version of 'embeddable_gbxml_editor.html' outside of OpebStudio
- Buttons load drawings via iframe.contentWindow.GBX.parseFile( gbxml-text );
- The script that gathers the source code files, glues them together and allows you to save the single file to disk
From email sent by Dan Macumber
- Our app users may not be online so we need the JavaScript dependencies to be directly copy/pasted into the html rather than loaded online
- We don’t want example files because that might confuse the users (e.g. wait that’s not my model, what’s happening?)
- We don’t yet support a workflow where the user could fix the file in the app so we would want to hide the fixer menus
- We need some type of method (e.g. setGbXml) that I can call from the app to pass in our gbXML file as a string
This is where the application currently initializes the gbXML viewer and passes in the file as a string to the setGbXml method. I am happy to change that method name if needed, for your testing with the current version of the app it is expecting the method setGbXml.
