SDS Viewer Running Instructions

1. Install node.js https://nodejs.org/en/

2. Open a terminal.

   • Mac
     • On your Mac, do one of the following:
       • Click the Launchpad icon in the Dock , type Terminal in the search field, then click Terminal.
       • In the Finder , open the /Applications/Utilities folder, then double-click Terminal.
   • Windows
     • Follow steps in this link to open a terminal as administrator in your Windows machine.
   • Linux
     • Open a terminal

3. Install yarn:

   • Mac
     • In the OS X terminal you need to type: sudo npm install --global yarn
       • NOTE: You'll be ask to enter your local system password.
     • If previous step fails, you can also install it with brew.
       brew install yarn
   • Windows
     • In a Windows terminal, type command: npm install --global yarn

4. Install git

   • Mac
     • In a terminal, install git by typing : brew install git or sudo yarn add git
   • Windows
     • Download installer from https://git-scm.com/download/win and run it.
   • Linux
     • Install it with sudo apt-get install git

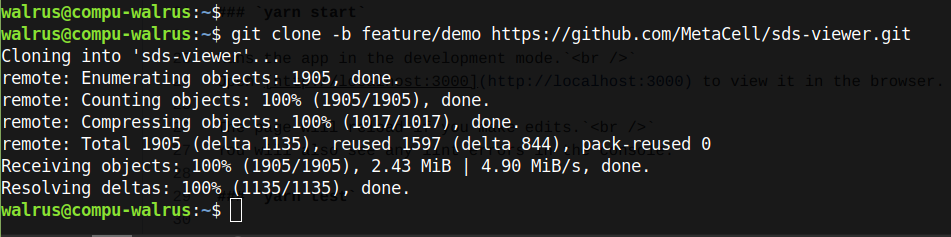

5. In terminal, type command git clone -b feature/demo https://github.com/MetaCell/sds-viewer.git

   • Output should be something like this.

6. Then navigate to the sds-viewer folder with command cd sds-viewer

7. Then type sudo yarn install --ignore-engines

8. Finally, to run application type sudo yarn start

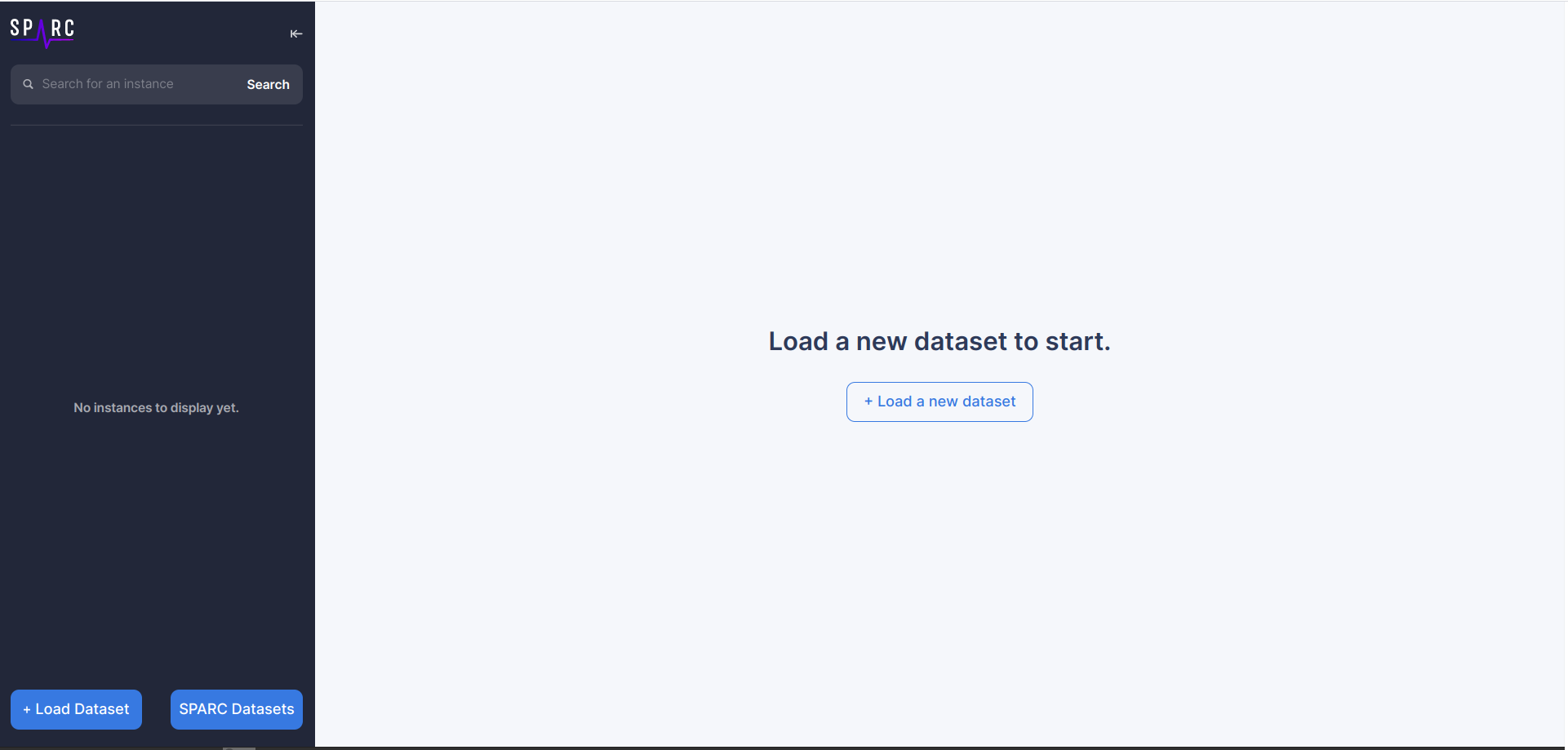

9. Last step should have opened a new browser tab with 'http://localhost:3000/', it will take a 1 minute before it finishes loading the first time. This should be the browser output.

SDS Viewer User Manual

Users can load datasets in a few different ways.

1. Loading a SPARC Dataset:

• Click on 'SPARC Datasets' button, it's located on the lower left corner.
• On the window that opens up, select the dataset you want to load.
• After selection, click 'Done'
• Dataset will be loaded.
• Datasets list comes from https://cassava.ucsd.edu/sparc/datasets/

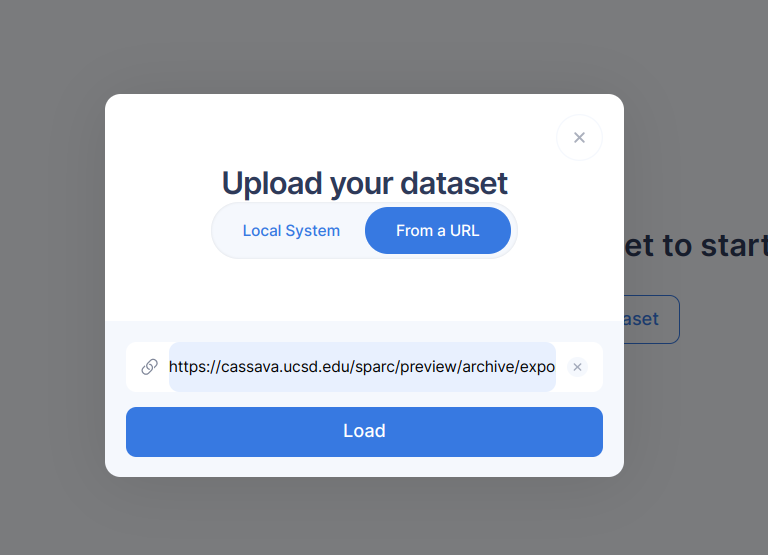

2. Loading an external dataset with a URL :

• Click on 'Import a new dataset'
• On the window that opens up, select 'From a URL'
• Paste the dataset url onto the textfield. For this use case, we only need to enter the URL of the turtle file. URL example https://cassava.ucsd.edu/sparc/preview/archive/exports/2021-06-21T103507%2C091927-0700/datasets/N%3Adataset%3A02d6f93c-56cd-471b-bbb9-99f65f47d203.ttl
• Click 'Load' and then 'Done'
• Dataset will be loaded

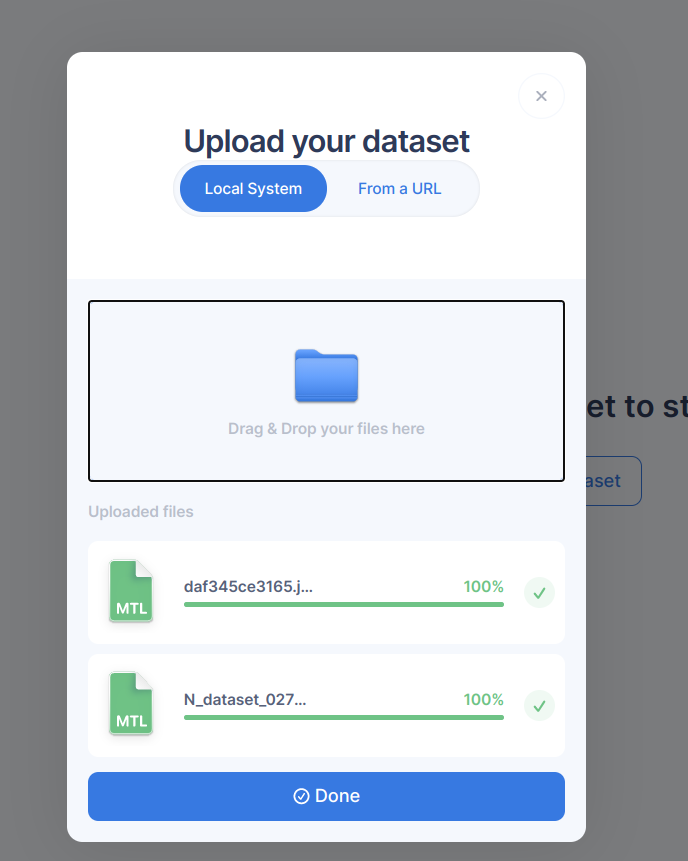

3. Loading an local dataset:

• Click on 'Import a new dataset'
• On the window that opens up, stay on 'Local System'.
• Add turtle and json file at the same time.
• Click 'Done'
• Dataset will be loaded

4. Loading a dataset specifying ID as parameter

• Users can specify the id of the dataset as a parameter on the URL and load it this way.
• For example, if user wants to load Dataset with ID 013224e7-e3e3-4d8a-90ef-d1b237323eff, we can add the id as parameter : https://metacell.github.io/sds-viewer/?id=013224e7-e3e3-4d8a-90ef-d1b237323eff This will open up the SDS Viewer with the dataset already loaded.

Datasets Used

The datasets we have been testing can be found here https://cassava.ucsd.edu/sparc/preview/archive/exports/2021-06-21T103507%2C091927-0700/

Error Handling

• In the case of encountering an error, take a screenshot and report it with us please by opening an issue
• To go back , click on the 'x' to go back to the previous screen.
