"Good Robot!" Research

Click the image to watch our press release video on the "Good Robot" paper (3 min): Press Release for first "Good Robot!" Paper

Click the image to watch an in depth talk covering all three papers (48 min): Talk Covering The Three Papers in this Repository

"Good Robot! Now Watch This!": Repurposing Reinforcement Learning for Task-to-Task Transfer

@inproceedings{hundt2021good,
  title = {''{{Good}} {{Robot}}! {{Now}} {{Watch This!}}'': {{Repurposing Reinforcement Learning}} for {{Task-to-Task Transfer}}},
  booktitle = {5th Annual Conference on Robot Learning},
  author = {Hundt, Andrew and Murali, Aditya and Hubli, Priyanka and Liu, Ran and Gopalan, Nakul and Gombolay, Matthew and Hager, Gregory D.},
  url = {https://openreview.net/forum?id=Pxs5XwId51n},
  year = {2021}
}

Paper, Poster

Abstract- Modern Reinforcement Learning (RL) algorithms are not sample efficient to train on multi-step tasks in complex domains, impeding their wider deployment in the real world. We address this problem by leveraging the insight that RL models trained to complete one set of tasks can be repurposed to complete related tasks when given just a handful of demonstrations. Based upon this insight, we propose See-SPOT-Run (SSR), a new computational approach to robot learning that enables a robot to complete a variety of real robot tasks in novel problem domains without task-specific training. SSR uses pretrained RL models to create vectors that represent model, task, and action relevance in demonstration and test scenes. SSR then compares these vectors via our Cycle Consistency Distance (CCD) metric to determine the next action to take. SSR completes 58% more task steps and 20% more trials than a baseline few-shot learning method that requires task-specific training. SSR also achieves a four order of magnitude improvement in compute efficiency and a 20% to three order of magnitude improvement in sample efficiency compared to the baseline and to training RL models from scratch. To our knowledge, we are the first to address multi-step tasks from demonstration on a real robot without task-specific training, where both the visual input and action space output are high dimensional.

Guiding Multi-Step Rearrangement Tasks with Natural Language Instructions

@inproceedings{
stengel-eskin2021guiding,
    title={Guiding Multi-Step Rearrangement Tasks with Natural Language Instructions},
    author={Elias Stengel-Eskin and Andrew Hundt and Zhuohong He and Aditya Murali and Nakul Gopalan and Matthew Gombolay and Gregory D. Hager},
    booktitle={5th Annual Conference on Robot Learning },
    year={2021},
    url={https://openreview.net/forum?id=-QJ__aPUTN2}
}

Paper, Poster, Readme

Enabling human operators to interact with robotic agents using natural language would allow non-experts to intuitively instruct these agents. Towards this goal, we propose a novel Transformer-based model which enables a user to guide a robot arm through a 3D multi-step manipulation task with natural language commands. Our system maps images and commands to masks over grasp or place locations, grounding the language directly in perceptual space. In a suite of block rearrangement tasks, we show that these masks can be combined with an existing manipulation framework without re-training, greatly improving learning efficiency. Our masking model is several orders of magnitude more sample efficient than typical Transformer models, operating with hundreds, not millions, of examples. Our modular design allows us to leverage supervised and reinforcement learning, providing an easy interface for experimentation with different architectures. Our model completes block manipulation tasks with synthetic commands 530% more often than a UNet-based baseline, and learns to localize actions correctly while creating a mapping of symbols to perceptual input that supports compositional reasoning. We provide a valuable resource for 3D manipulation instruction following research by porting an existing 3D block dataset with crowdsourced language to a simulated environment. Our method's 25.3% absolute improvement in identifying the correct block on the ported dataset demonstrates its ability to handle syntactic and lexical variation.

"Good Robot!" Efficient Reinforcement Learning for Multi-Step Visual Tasks with Sim to Real Transfer


@article{hundt2020good,
  title = {``{{Good Robot}}!'': {{Efficient Reinforcement Learning}} for {{Multi}}-{{Step Visual Tasks}} with {{Sim}} to {{Real Transfer}}},
  author = {Hundt, Andrew and Killeen, Benjamin and Greene, Nicholas and Wu, Hongtao and Kwon, Heeyeon and Paxton, Chris and Hager, Gregory D.},
  year = {2020},
  journal = {IEEE Robotics and Automation Letters (RA-L)},
  volume = {5},
  number = {4},
  pages = {6724--6731},
  doi={10.1109/LRA.2020.3015448},
  url={https://arxiv.org/abs/1909.11730}
}

Paper, Technical Talk Video (20 mins), Readme

Authors: Andrew Hundt, Benjamin Killeen, Heeyeon Kwon, Chris Paxton, and Gregory D. Hager

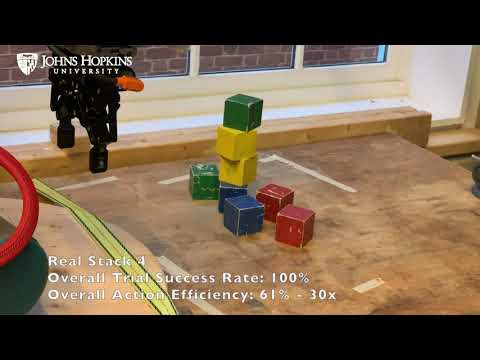

Click the image to watch the supplementary video:

"Good Robot!": Efficient Reinforcement Learning for Multi Step Visual Tasks via Reward Shaping

Abstract— Current Reinforcement Learning (RL) algorithms struggle with long-horizon tasks where time can be wasted exploring dead ends and task progress may be easily reversed. We develop the SPOT framework, which explores within action safety zones, learns about unsafe regions without exploring them, and prioritizes experiences that reverse earlier progress to learn with remarkable efficiency.

The SPOT framework successfully completes simulated trials of a variety of tasks, improving a baseline trial success rate from 13% to 100% when stacking 4 cubes, from 13% to 99% when creating rows of 4 cubes, and from 84% to 95% when clearing toys arranged in adversarial patterns. Efficiency with respect to actions per trial typically improves by 30% or more, while training takes just 1-20k actions, depending on the task.

Furthermore, we demonstrate direct sim to real transfer. We are able to create real stacks in 100% of trials with 61% efficiency and real rows in 100% of trials with 59% efficiency by directly loading the simulation-trained model on the real robot with no additional real-world fine-tuning. To our knowledge, this is the first instance of reinforcement learning with successful sim to real transfer applied to long term multi-step tasks such as block-stacking and row-making with consideration of progress reversal. Code is available at https://github.com/jhu-lcsr/good_robot.

Key Components

Additional instructions for setup and Good Robot! capabilities are in README_good_robot.md, and natural language capabilities are documented in README_LANGUAGE.md.

demo.py

This file defines the Demonstration class, which is a data structure to store task demonstrations. The Demonstration class reads demos from a parent folder. This parent folder contains subfolders for (1) color images, (2) color heightmaps, (3) depth images, and (4) depth heightmaps. It also contains a transitions directory which contains information on executed actions. It is compatible with any task demonstration generated with the touch.py script.

touch.py

This is a utility to generate task demonstrations by specifying actions with key presses and specifying action location by clicking on images of the simulated workspace. The saved demonstrations can be directly loaded in downstream scripts using the interface provided by demo.py. A description of how to use the script is provided below.

models.py

This file defines PixelNet, the architecture of the DQN RL policies we use in See-SPOT-Run. These policies are used to extract embedding functions E. The models defined here are instantiated, trained, and evaluated in trainer.py.

trainer.py

This file defines the Trainer class, a wrapper for PixelNet that implements a training and testing loop, Experience Replay, and loading and preprocessing data from demos and the live test environment.

We provide instructions to train these policies on each of 4 tasks (row, stack, unstack, vertical square) below. Training these DQN RL policies is Step I. Before Demonstration in Reinforcement Learning Before Demonstration (RLBD).

robot.py

This file defines all simulation and real robot related code. It contains utilities to get data from the simulated sensors as well as information about the simulated state (e.g. positions, orientations, IDs, etc. of objects in the scene). It also contains analogous utilities to get data from the real robot sensors. Lastly, it contains functions to assess task progress for each task (row, stack, unstack, and vertical square). These functions are check_row, check_stack, unstacking_partial_success, and vertical_square_partial_success. We also provide a manual_progress_check function that is used in some of the real robot experiments where we did not implement a scripted observer to assess progress (don't have absolute positions and orientations of blocks during real experiments, and must estimate them from depth values, which can be inaccurate).

utils.py

This file defines various miscellaneous utility functions.

The first important function, compute_demo_dist, has two steps: first, it computes a candidate test action by selecting the test action with minimal Euclidean distance to the target demo action (distance computed in embedding space). It does this for each Policy-Demonstration Pair (PDP, M x N total), then picks the action from the M x N total candidate actions by comparing their Euclidean match distance with the demo action. This Euclidean match distance is what we refer to as the L2 Consistency Distance (L2CD) in Algorithm 2, and this function is our implementation of the first part of Algorithm 2.

The next important function, compute_cc_dist, has the same first step as compute_demo_dist. However, instead of computing the L2CD, it instead iterates through each of the M x N candidate actions and computes the CCD. This is calculated by rematching the test action to the demo space, and computing the distance between the coordinates of the original target demo action and the coordinates of the rematched action. Finally, the action with minimal CCD is returned. This function is our implementation of the second part of Algorithm 2.

In our experiments, we have 3 pretrained policies and 2 demonstrations of the test task. Thus, M = 3, N = 2, and M x N = 6.

evaluate\_demo\_correspondence.py

main.py

This is the driver file from which all model trains and experiments are run. It makes all necessary calls to classes and functions from the other files listed above (aside from touch.py, which needs to be run separately to generate demonstrations). We provide commands to run each component of our experiments below.

To Run

Starting the V-REP Simulation

To pretrain RL policies, collect demonstrations, and run any of our simulation experiments, we need to first start a CoppeliaSim instance, which will run in the background during training.

Download CoppeliaSim (formerly V-REP) and run it to start the simulation. You may need to adjust the paths below to match your V-REP folder.

To start with the GUI on, use the below command.

cd ~/real_good_robot
~/CoppeliaSim_Edu_V4_0_0_Ubuntu18_04/coppeliaSim.sh -gREMOTEAPISERVERSERVICE_19997_FALSE_TRUE -s ~/src/real_good_robot/simulation/simulation.ttt

To start in headless mode (no GUI), use the below command.

cd ~/real_good_robot
~/CoppeliaSim_Edu_V4_0_0_Ubuntu18_04/coppeliaSim.sh -gREMOTEAPISERVERSERVICE_19997_FALSE_TRUE -s ~/src/real_good_robot/simulation/simulation.ttt -h

The number used in the gREMOTEAPISERVERSERVICE argument is the TCP_PORT to specify in the calls below. Note that the default value of 19997 is required for the touch.py script.

Generating Demonstrations

To generate demonstrations, use the below command. Note that this requires starting the simulator as described above.

python touch.py -t [TASK_TYPE] --save, where [TASK_TYPE] is one of [row, stack, unstack, vertical_square].

This command opens two windows, a window with a depth image, and a window with a color image. At each step, the user must specify either a grasp or place action with a keypress: g for grasp, p for place. After specifying the action with a keypress, the user must then click on the color image at the location at which the grasp/place should be centered.

Following this mouseclick, the gripper will execute the action, and after it is finished executing, the next action can be specified. Once a demonstration has been completed, the user has two options. (1) Pressing the c key to collect another demonstration, and (2) pressing the q key to exit. To reproduce our results, it is important to collect both demonstrations of the task in one run of touch.py so that the filestructure of the demonstrations is consistent.

We recommend using touch.py without the --save flag set a couple times to get used to the workflow. Collected demonstrations should be ideal for our method to function optimally, and location of the keypress can appear to be different from the location that the gripper comes down (this is due to the angle of the camera and depth ambiguity).

Pretraining RL Policies

We provide commands to pretrain RL policies for each task below. Note that this requires starting the simulator as described above.

Row

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --is_sim --obj_mesh_dir objects/blocks --num_obj 4 --push_rewards --experience_replay
 --explore_rate_decay --trial_reward --common_sense --place --future_reward_discount 0.65 --tcp_port [TCP_PORT] --random_seed 1238 --max_train_actions 40000
 --random_actions --task_type row --depth_channels_history

Stack

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --is_sim --obj_mesh_dir objects/blocks --num_obj 8 --push_rewards --experience_replay
 --explore_rate_decay --trial_reward --common_sense --check_z_height --tcp_port [TCP_PORT] --place --future_reward_discount 0.65 --random_seed 1238
 --max_train_actions 40000 --random_actions --task_type stack --depth_channels_history

Unstack

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --is_sim --obj_mesh_dir objects/blocks --num_obj 4 --push_rewards --experience_replay
 --explore_rate_decay --trial_reward --common_sense --place --future_reward_discount 0.65 --tcp_port [TCP_PORT] --random_seed 1238 --max_train_actions 40000
 --random_actions --task_type unstack --trial_reward

Vertical Square

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --is_sim --obj_mesh_dir objects/blocks --num_obj 4 --push_rewards --experience_replay
 --explore_rate_decay --trial_reward --common_sense --place --future_reward_discount 0.65 --tcp_port [TCP_PORT] --random_seed 1238 --max_train_actions 40000
 --random_actions --task_type vertical_square --depth_channels_history

We additionally provide pretrained model files with the code to allow running imitation experiments without the need for this time-consuming pretraining step.

Precomputing Demo Embeddings

Once demonstrations have been generated, we recommend precomputing demo embeddings to speed up the imitation test runs. This is not a necessary step, but it greatly increases runtime, and particularly for simulated experiments, bugs can arise due to long periods of inactivity.

Dictionary of demo embeddings are saved in demos/<demo_folder>/embedding/embed_dict.pickle. Note that this dictionary takes up significant disk space (~20 GB), so ensure that you have the requisite storage space available.

Row

python3 evaluate_demo_correspondence.py -e demos/PATH_TO_ROW_DEMOS -d demos/PATH_TO_ROW_DEMOS -t row --stack_snapshot_file logs/PATH_TO_STACK_TRAINED_POLICY
--vertical_square_snapshot_file base_models/PATH_TO_VERT_SQUARE_TRAINED_POLICY --unstack_snapshot_file base_models/PATH_TO_UNSTACK_TRAINED_POLICY --write_embed
 --depth_channels_history --cycle_consistency

Stack

python3 evaluate_demo_correspondence.py -e demos/PATH_TO_STACK_DEMOS -d demos/PATH_TO_STACK_DEMOS -t stack --row_snapshot_file logs/PATH_TO_ROW_TRAINED_POLICY
--vertical_square_snapshot_file base_models/PATH_TO_VERT_SQUARE_TRAINED_POLICY --unstack_snapshot_file base_models/PATH_TO_UNSTACK_TRAINED_POLICY --write_embed
 --depth_channels_history --cycle_consistency

Unstacking

python3 evaluate_demo_correspondence.py -e demos/PATH_TO_UNSTACK_DEMOS -d demos/PATH_TO_UNSTACK_DEMOS -t unstack --stack_snapshot_file logs/PATH_TO_STACK_TRAINED_POLICY
--vertical_square_snapshot_file base_models/PATH_TO_VERT_SQUARE_TRAINED_POLICY --row_snapshot_file base_models/PATH_TO_ROW_TRAINED_POLICY --write_embed
 --depth_channels_history --cycle_consistency

Vertical Square

python3 evaluate_demo_correspondence.py -e demos/PATH_TO_VERT_SQUARE_DEMOS -d demos/PATH_TO_VERT_SQUARE_DEMOS -t vertical_square
 --row_snapshot_file logs/PATH_TO_ROW_TRAINED_POLICY --stack_snapshot_file base_models/PATH_TO_STACK_TRAINED_POLICY
 --unstack_snapshot_file base_models/PATH_TO_UNSTACK_TRAINED_POLICY --write_embed --depth_channels_history --cycle_consistency

Running Imitation Experiments

Simulation

We first provide commands to run imitation experiments in simulation. The results of these experiments are enumerated in Table 2. Note that this requires starting the simulator as described above.

Row

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --is_sim --obj_mesh_dir objects/blocks --num_obj 4 --common_sense --place --tcp_port 19998 --random_seed 1238 --max_test_trials 50 --task_type row --is_testing --use_demo --demo_path PATH_TO_ROW_DEMOS --stack_snapshot_file logs/PATH_TO_STACK_POLICY --vertical_square_snapshot_file logs/PATH_TO_VERT_SQUARE_POLICY --unstack_snapshot_file logs/PATH_TO_UNSTACK_POLICY --grasp_only --depth_channels_history --cycle_consistency --no_common_sense_backprop --future_reward_discount 0.65

Stack

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --is_sim --obj_mesh_dir objects/blocks --num_obj 4 --common_sense --place --tcp_port 19990 --random_seed 1238 --max_test_trials 50 --task_type stack --is_testing --use_demo --demo_path PATH_TO_STACK_DEMOS --row_snapshot_file logs/PATH_TO_ROW_POLICY --vertical_square_snapshot_file logs/PATH_TO_VERT_SQUARE_POLICY --unstack_snapshot_file logs/PATH_TO_UNSTACK_POLICY --grasp_only --depth_channels_history --cycle_consistency --no_common_sense_backprop --future_reward_discount 0.65

Unstack

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --is_sim --obj_mesh_dir objects/blocks --num_obj 4 --common_sense --place --tcp_port 19999 --random_seed 1238 --max_test_trials 50 --task_type unstack --is_testing --use_demo --demo_path PATH_TO_UNSTACK_DEMOS --stack_snapshot_file logs/PATH_TO_STACK_POLICY --vertical_square_snapshot_file logs/PATH_TO_VERT_SQUARE_POLICY --row_snapshot_file logs/PATH_TO_ROW_POLICY --grasp_only --depth_channels_history --cycle_consistency --no_common_sense_backprop --future_reward_discount 0.65

Vertical Square

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --is_sim --obj_mesh_dir objects/blocks --num_obj 4 --common_sense --place --tcp_port 20000 --random_seed 1238 --max_test_trials 50 --task_type vertical_square --is_testing --use_demo --demo_path PATH_TO_VERT_SQUARE_DEMOS --stack_snapshot_file logs/PATH_TO_STACK_POLICY --unstack_snapshot_file logs/PATH_TO_UNSTACK_POLICY --row_snapshot_file logs/PATH_TO_ROW_POLICY --grasp_only --depth_channels_history --cycle_consistency --no_common_sense_backprop --future_reward_discount 0.65

Real

Now we provide commands to run imitation experiments on the real robot. The results of these experiments are enumerated in Table 3. Note that this requires a calibrated UR5 as per the instructions in the below section.

Row

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --obj_mesh_dir objects/blocks --num_obj 4 --check_z_height --common_sense --place --random_seed 1238 --max_test_trials 10 --task_type row --is_testing --use_demo --demo_path PATH_TO_ROW_DEMOS --stack_snapshot_file logs/PATH_TO_STACK_POLICY --vertical_square_snapshot_file logs/PATH_TO_VERT_SQUARE_POLICY --unstack_snapshot_file logs/PATH_TO_UNSTACK_POLICY --grasp_only --depth_channels_history --cycle_consistency --no_common_sense_backprop

Stack

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --obj_mesh_dir objects/blocks --num_obj 4 --num_extra_obj 4 --check_z_height --common_sense --place --random_seed 1238 --max_test_trials 10 --task_type stack --is_testing --use_demo --demo_path PATH_TO_STACK_DEMOS --row_snapshot_file logs/PATH_TO_ROW_POLICY --vertical_square_snapshot_file logs/PATH_TO_VERT_SQUARE_POLICY --unstack_snapshot_file logs/PATH_TO_UNSTACK_POLICY --grasp_only --depth_channels_history --cycle_consistency --no_common_sense_backprop

Unstack

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --check_z_height --disable_two_step_backprop --obj_mesh_dir objects/blocks --num_obj 4 --common_sense --place --random_seed 1238 --max_test_trials 10 --task_type unstack --is_testing --use_demo --demo_path PATH_TO_UNSTACK_DEMOS --stack_snapshot_file logs/PATH_TO_STACK_POLICY --vertical_square_snapshot_file logs/PATH_TO_VERT_SQUARE_POLICY --row_snapshot_file logs/PATH_TO_ROW_POLICY --grasp_only --depth_channels_history --cycle_consistency --no_common_sense_backprop

Vertical Square

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --check_z_height --obj_mesh_dir objects/blocks --num_obj 4 --common_sense --place --random_seed 1238 --max_test_trials 10 --task_type vertical_square --is_testing --use_demo --demo_path PATH_TO_VERT_SQUARE_DEMOS --stack_snapshot_file logs/PATH_TO_STACK_POLICY --unstack_snapshot_file logs/PATH_TO_UNSTACK_POLICY --row_snapshot_file logs/PATH_TO_ROW_POLICY --grasp_only --cycle_consistency --no_common_sense_backprop

Files

We provide both demonstration directories and pretrained model files in the experiment_files directory. These can be used rather than generating them yourself.

Running on a Real UR5 with ROS Based Image Collection

ROS Based Image Collection Setup

We require python3, so you'll need to ensure export ROS_PYTHON_VERSION=3 is set for the build. A couple additional steps below will need to be added in the middle. We advise installing in the folder:

~/ros_catkin_ws

Follow instructions in the ROS Melodic steps to build ros from source.

In particular fix up this command:

export ROS_PYTHON_VERSION=3 && rosinstall_generator desktop_full --rosdistro melodic --deps --tar > melodic-desktop-full.rosinstall && wstool init -j8 src melodic-desktop-full.rosinstall

For the primesense camera add in the openni2_launch, and rgbd_launch repositories, and for handeye calibration between the camera and robot add UbiquityRobotics/fiducials:

cd ~/catkin_ros_ws
git clone https://github.com/ros-drivers/openni2_launch.git
git clone https://github.com/ros-drivers/rgbd_launch.git
git clone https://github.com/UbiquityRobotics/fiducials.git

Run the build and install.

cd ~/ros_catkin_ws
rosdep install --from-paths src --ignore-src --rosdistro melodic -y && ./src/catkin/bin/catkin_make_isolated --install

Source the ros setup so you get access to the launch commands:

source ~/ros_catkin_ws/install_isolated/setup.zsh

Running ROS with depth image processing:

taskset 0x00000FFF roslaunch openni2_launch openni2.launch depth_registration:=true

We use the linux taskset command (examples) to limit ROS to utilizing 8 cores or fewer, so other cores are available for training.

In a separate tab run our small test script:

python test_ros_images.py

Running RVIZ to look at the images:

rosrun rviz rviz

The correct images are from the following ROS topics:


        self.rgb_topic = "/camera/rgb/image_rect_color"
        # raw means it is in the format provided by the openi drivers, 16 bit int
        self.depth_topic = "/camera/depth_registered/hw_registered/image_rect"

Calibrating Camera Intrincics

You must first calibrate your rgb and depth camera intrinsics and rectify your images to ensure you can accurately convert camera positions to robot poses. We do this using camera_calibration in the ros-perception/image_pipeline library.

You will need to generate and load a calibration yaml file which goes in a location like ~/.ros/camera_info/rgb_PS1080_PrimeSense.yaml. We have an examle from our robot in this repository saved at real/rgb_PS1080_PrimeSense.yaml.

Calibrating Camera Extrinsics

  1. Print an ArUco Tag, we use 70mm tags with the 4x4 design (dictionary 1), so it can fit in the gripper. Make sure the ArUco dictionary id in the launch files is correct. Attach the ArUco Tag on the robot.

  2. Edit the fiducials ROS package aruco_detect.launch file in ~/ros_catkin_ws/src/fiducials/aruco_detect/launch/aruco_detect.launch from the fiducials github repository you cloned earlier, see the fiducials wiki for reference. Modify the launch file in [fiducials/aruco to detect your markers and receive images from your sensor. Here is our configuration:


<!-- Run the aruco_detect node -->
<launch>
  <!-- namespace for camera input -->
  <!-- /camera/rgb/image_rect_color/compressed -->
  <arg name="camera" default="/camera/rgb"/>
  <arg name="image" default="image_rect_color"/>
  <arg name="transport" default="compressed"/>
  <arg name="fiducial_len" default="0.07"/>
  <arg name="dictionary" default="1"/>
  <arg name="do_pose_estimation" default="true"/>
  <arg name="ignore_fiducials" default="" />
  <arg name="fiducial_len_override" default="" />

  <node pkg="aruco_detect" name="aruco_detect"
    type="aruco_detect" output="screen" respawn="false">
    <param name="image_transport" value="$(arg transport)"/>
    <param name="publish_images" value="true" />
    <param name="fiducial_len" value="$(arg fiducial_len)"/>
    <param name="dictionary" value="$(arg dictionary)"/>
    <param name="do_pose_estimation" value="$(arg do_pose_estimation)"/>
    <param name="ignore_fiducials" value="$(arg ignore_fiducials)"/>
    <param name="fiducial_len_override" value="$(arg fiducial_len_override)"/>
    <remap from="/camera/compressed"
        to="$(arg camera)/$(arg image)/$(arg transport)"/>
    <remap from="/camera_info" to="$(arg camera)/camera_info"/>
  </node>
</launch>
  1. You must predefine the workspace_limits python variables in the calibration_ros.py, touch.py, main.py, robot.py, and demo.py. To modify these locations, change the variables workspace_limits at the end of calibrate_ros.py. You may define it in the Calibrate class or in the function collect_data for data collection.

  2. The code directly communicates with the robot via TCP. At the top of calibrate_ros.py, change variable tcp_host_ip to point to the network IP address of your UR5 robot controller.

  3. Roslaunch the camera with, for example:

taskset 0x00000FFF roslaunch openni2_launch openni2.launch depth_registration:=true

We use the [linux taskset command](https://linux.die.net/man/1/taskset) ([examples](https://www.howtoforge.com/linux-taskset-command/)) to limit ROS to utilizing 8 cores or fewer, so other cores are available for training.
  1. The script is subscribed to the rostopic /fiducial_transform to get the pose of the tag in the camera frame. Roslaunch aruco_detect:
taskset 0x00000FFF roslaunch aruco_detect aruco_detect.launch

The robot will move suddenly and rapidly. Users must be ready to push the emergency stop button at any time.

  1. CAREFULLY run python touch.py to start the arm, it will move suddenly!

  2. Center the AR tag on the gripper manually using the teach mode button on the robot.

  3. Click on the title bar of the color image window, do not click on the general color area the robot may move suddenly!

  4. Press - to close the gripper (= will open it), and check that the center of the AR tag is where you want your gripper center to be defined.

  5. Press k to calibrate, and after going to a number of positions you should see a calibration result like the following:

Total number of poses: 26
Invalid poses number: 0
Robot Base to Camera:
[[ 0.1506513   0.87990966 -0.45062533  0.79319678]
 [ 0.98857761 -0.13210593  0.07254191 -0.14601768]
 [ 0.00430005 -0.45640664 -0.88976092  0.55173518]
 [ 0.          0.          0.          1.        ]]
Total number of poses: 26
Invalid poses number: 0
Tool Tip to AR Tag:
[[ 0.18341198 -0.01617267 -0.98290309  0.0050482 ]
 [ 0.03295954  0.99940367 -0.01029385  0.01899328]
 [ 0.98248344 -0.03050802  0.18383565  0.10822485]
 [ 0.          0.          0.          1.        ]]

Backup procedure (in place of the steps 6 and later from above): with caution, run the following to move the robot and calibrate:

The robot will move suddenly and rapidly. Users must be ready to push the emergency stop button at any time.

python calibrate_ros.py

The script will record the pose of the robot and the ArUco tag in the camera frame with correspondence. Then it uses the Park and Martin Method to solve the AX=XB problem for the hand-eye calibration. And the method is implemented in the utils.py. The script will generate a robot_base_to_camera_pose.txt in real/. This txt basically is the pose of the camera in the robot base frame.

If you already have corresponded pose file of the robot and the ArUco tag, you can also use the calibrate() function in the calibrate_ros.py to directly calculate the pose of the camera without the data collection step.

Collecting the Background heightmap

The real robot also uses a background heightmap of the scene with no objects present.

  1. Completely clear the table or working surface.
  2. Back up and remove the current real/background_heightmap.depth.png.
  3. Run pushing and grasping data collection with the --show_heightmap flag.
  4. View the heightmap images until you see one with no holes (black spots), and save the iteration number at the top.
  5. Copy the good heightmap from logs/<run_folder>/data/depth_heightmaps/<iteration>.0.depth.png and rename it to real/background_heightmap.depth.png.
  6. Stop and re-run pushing and grasping with the --show_heightmap flag.

Here is an example of the matplotlib visualization of a good depth heightmap, there are no black specks aside from one corner which is out of the camera's field of view:

example_background_depth_map

Your updated depth heightmaps should be good to go!

"Good Robot!" is forked from the Visual Pushing and Grasping Toolbox

Original Visual Pushing Grasping (VPG) Repository. Edits have been made to the text below to reflect some configuration and code updates needed to reproduce the previous VPG paper's original behavior:

Visual Pushing and Grasping (VPG) is a method for training robotic agents to learn how to plan complementary pushing and grasping actions for manipulation (e.g. for unstructured pick-and-place applications). VPG operates directly on visual observations (RGB-D images), learns from trial and error, trains quickly, and generalizes to new objects and scenarios.



This repository provides PyTorch code for training and testing VPG policies with deep reinforcement learning in both simulation and real-world settings on a UR5 robot arm. This is the reference implementation for the paper:

Learning Synergies between Pushing and Grasping with Self-supervised Deep Reinforcement Learning

PDF | Webpage & Video Results

Andy Zeng, Shuran Song, Stefan Welker, Johnny Lee, Alberto Rodriguez, Thomas Funkhouser

IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) 2018

Skilled robotic manipulation benefits from complex synergies between non-prehensile (e.g. pushing) and prehensile (e.g. grasping) actions: pushing can help rearrange cluttered objects to make space for arms and fingers; likewise, grasping can help displace objects to make pushing movements more precise and collision-free. In this work, we demonstrate that it is possible to discover and learn these synergies from scratch through model-free deep reinforcement learning. Our method involves training two fully convolutional networks that map from visual observations to actions: one infers the utility of pushes for a dense pixel-wise sampling of end effector orientations and locations, while the other does the same for grasping. Both networks are trained jointly in a Q-learning framework and are entirely self-supervised by trial and error, where rewards are provided from successful grasps. In this way, our policy learns pushing motions that enable future grasps, while learning grasps that can leverage past pushes. During picking experiments in both simulation and real-world scenarios, we find that our system quickly learns complex behaviors amid challenging cases of clutter, and achieves better grasping success rates and picking efficiencies than baseline alternatives after only a few hours of training. We further demonstrate that our method is capable of generalizing to novel objects.

Citing

If you find this code useful in your work, please consider citing:

@inproceedings{zeng2018learning,
  title={Learning Synergies between Pushing and Grasping with Self-supervised Deep Reinforcement Learning},
  author={Zeng, Andy and Song, Shuran and Welker, Stefan and Lee, Johnny and Rodriguez, Alberto and Funkhouser, Thomas},
  booktitle={IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS)},
  year={2018}
}

Demo Videos

Demo videos of a real robot in action can be found here.

Contact

The contact for CoSTAR Visual Stacking is Andrew Hundt. The contact for the original Visual Pushing Grasping repository is Andy Zeng andyz[at]princeton[dot]edu

Installation

This implementation requires the following dependencies (tested on Ubuntu 16.04.4 LTS):

  • Python 2.7 or Python 3

  • NumPy, SciPy, OpenCV-Python, Matplotlib. You can quickly install/update these dependencies by running the following (replace pip with pip3 for Python 3):

    pip3 install numpy scipy opencv-python matplotlib
  • PyTorch version 1.2:

    pip3 install torch==1.2 torchvision==0.4.0
  • V-REP (simulation environment)

(Optional) GPU Acceleration

Accelerating training/inference with an NVIDIA GPU requires installing CUDA and cuDNN. You may need to register with NVIDIA for the CUDA Developer Program (it's free) before downloading. This code has been tested with CUDA 8.0 and cuDNN 6.0 on a single NVIDIA Titan X (12GB). Running out-of-the-box with our pre-trained models using GPU acceleration requires 8GB of GPU memory. Running with GPU acceleration is highly recommended, otherwise each training iteration will take several minutes to run (as opposed to several seconds). This code automatically detects the GPU(s) on your system and tries to use it. If you have a GPU, but would instead like to run in CPU mode, add the tag --cpu when running main.py below.

A Quick-Start: Demo in Simulation

This demo runs our pre-trained model with a UR5 robot arm in simulation on challenging picking scenarios with adversarial clutter, where grasping an object is generally not feasible without first pushing to break up tight clusters of objects.

Instructions

  1. Checkout this repository and download our pre-trained models.

    git clone https://github.com/jhu-lcsr/costar_visual_stacking.git visual-pushing-grasping
    cd visual-pushing-grasping/downloads
    ./download-weights.sh
    cd ..
  2. Run V-REP (navigate to your V-REP directory and run ./vrep.sh). From the main menu, select File > Open scene..., and open the file visual-pushing-grasping/simulation/simulation.ttt from this repository.

  3. In another terminal window, run the following (simulation will start in the V-REP window):

    python main.py --is_sim --obj_mesh_dir 'objects/blocks' --num_obj 10 \
        --push_rewards --experience_replay --explore_rate_decay \
        --is_testing --test_preset_cases --test_preset_file 'simulation/test-cases/test-10-obj-07.txt' \
        --load_snapshot --snapshot_file 'downloads/vpg-original-sim-pretrained-10-obj.pth' \
        --save_visualizations --nn densenet

Note: you may get a popup window titled "Dynamics content" in your V-REP window. Select the checkbox and press OK. You will have to do this a total of 3 times before it stops annoying you.

Training

To train a regular VPG policy from scratch in simulation, first start the simulation environment by running V-REP (navigate to your V-REP directory and run ./vrep.sh). From the main menu, select File > Open scene..., and open the file visual-pushing-grasping/simulation/simulation.ttt. Then navigate to this repository in another terminal window and run the following:

python main.py --is_sim --push_rewards --experience_replay --explore_rate_decay --save_visualizations

Data collected from each training session (including RGB-D images, camera parameters, heightmaps, actions, rewards, model snapshots, visualizations, etc.) is saved into a directory in the logs folder. A training session can be resumed by adding the --resume flag, which then loads the model snapshot specified by --snapshot_file and transition history from the provided session directory:

python main.py --is_sim --push_rewards --experience_replay --explore_rate_decay --save_visualizations \
    --snapshot_file 'logs/YOUR-SESSION-DIRECTORY-NAME-HERE/models/snapshot-backup.reinforcement.pth' \
    --resume 'logs/YOUR-SESSION-DIRECTORY-NAME-HERE' \

If the --resume flag is raised without an argument, the most recent log file is used. If --resume is raised but no --snapshot-file is specified, the snapshot file from the implied or specified logging directory is used.

Various training options can be modified or toggled on/off with different flags (run python main.py -h to see all options):

usage: main.py [-h] [--is_sim] [--obj_mesh_dir OBJ_MESH_DIR]
               [--num_obj NUM_OBJ] [--num_extra_obj NUM_EXTRA_OBJ]
               [--tcp_host_ip TCP_HOST_IP] [--tcp_port TCP_PORT]
               [--rtc_host_ip RTC_HOST_IP] [--rtc_port RTC_PORT]
               [--heightmap_resolution HEIGHTMAP_RESOLUTION]
               [--random_seed RANDOM_SEED] [--cpu] [--flops] [--method METHOD]
               [--push_rewards]
               [--future_reward_discount FUTURE_REWARD_DISCOUNT]
               [--experience_replay] [--heuristic_bootstrap]
               [--explore_rate_decay] [--grasp_only] [--check_row]
               [--random_weights] [--max_iter MAX_ITER] [--place]
               [--no_height_reward] [--grasp_color_task]
               [--grasp_count GRASP_COUT] [--transfer_grasp_to_place]
               [--check_z_height] [--trial_reward]
               [--check_z_height_goal CHECK_Z_HEIGHT_GOAL]
               [--disable_situation_removal] [--is_testing]
               [--evaluate_random_objects] [--max_test_trials MAX_TEST_TRIALS]
               [--test_preset_cases] [--test_preset_file TEST_PRESET_FILE]
               [--test_preset_dir TEST_PRESET_DIR]
               [--show_preset_cases_then_exit] [--load_snapshot]
               [--snapshot_file SNAPSHOT_FILE] [--nn NN] [--continue_logging]
               [--logging_directory LOGGING_DIRECTORY] [--save_visualizations]

Train robotic agents to learn how to plan complementary pushing, grasping, and placing as well as multi-step tasks
for manipulation with deep reinforcement learning in PyTorch.

optional arguments:
  -h, --help            show this help message and exit
  --is_sim              run in simulation?
  --obj_mesh_dir OBJ_MESH_DIR
                        directory containing 3D mesh files (.obj) of objects
                        to be added to simulation
  --num_obj NUM_OBJ     number of objects to add to simulation
  --num_extra_obj NUM_EXTRA_OBJ
                        number of secondary objects, like distractors, to add
                        to simulation
  --tcp_host_ip TCP_HOST_IP
                        IP address to robot arm as TCP client (UR5)
  --tcp_port TCP_PORT   port to robot arm as TCP client (UR5)
  --rtc_host_ip RTC_HOST_IP
                        IP address to robot arm as real-time client (UR5)
  --rtc_port RTC_PORT   port to robot arm as real-time client (UR5)
  --heightmap_resolution HEIGHTMAP_RESOLUTION
                        meters per pixel of heightmap
  --random_seed RANDOM_SEED
                        random seed for simulation and neural net
                        initialization
  --cpu                 force code to run in CPU mode
  --flops               calculate floating point operations of a forward pass
                        then exit
  --method METHOD       set to 'reactive' (supervised learning) or
                        'reinforcement' (reinforcement learning ie Q-learning)
  --push_rewards        use immediate rewards (from change detection) for
                        pushing?
  --future_reward_discount FUTURE_REWARD_DISCOUNT
  --experience_replay   use prioritized experience replay?
  --heuristic_bootstrap
                        use handcrafted grasping algorithm when grasping fails
                        too many times in a row during training?
  --explore_rate_decay
  --grasp_only
  --check_row           check for placed rows instead of stacks
  --random_weights      use random weights rather than weights pretrained on
                        ImageNet
  --max_iter MAX_ITER   max iter for training. -1 (default) trains
                        indefinitely.
  --place               enable placing of objects
  --no_height_reward    disable stack height reward multiplier
  --grasp_color_task    enable grasping specific colored objects
  --grasp_count GRASP_COUT
                        number of successful task based grasps
  --transfer_grasp_to_place
                        Load the grasping weights as placing weights.
  --check_z_height      use check_z_height instead of check_stacks for any
                        stacks
  --trial_reward        Experience replay delivers rewards for the whole
                        trial, not just next step.
  --check_z_height_goal CHECK_Z_HEIGHT_GOAL
                        check_z_height goal height, a value of 2.0 is 0.1
                        meters, and a value of 4.0 is 0.2 meters
  --disable_situation_removal
                        Disables situation removal, where rewards are set to 0
                        and a reset is triggerd upon reveral of task progress.
  --is_testing
  --evaluate_random_objects
                        Evaluate trials with random block positions, for
                        example testing frequency of random rows.
  --max_test_trials MAX_TEST_TRIALS
                        maximum number of test runs per case/scenario
  --test_preset_cases
  --test_preset_file TEST_PRESET_FILE
  --test_preset_dir TEST_PRESET_DIR
  --show_preset_cases_then_exit
                        just show all the preset cases so you can have a look,
                        then exit
  --load_snapshot       load pre-trained snapshot of model?
  --snapshot_file SNAPSHOT_FILE
  --nn NN               Neural network architecture choice, options are
                        efficientnet, densenet
  --continue_logging    continue logging from previous session?
  --logging_directory LOGGING_DIRECTORY
  --save_visualizations
                        save visualizations of FCN predictions?

Results from our baseline comparisons and ablation studies in our paper can be reproduced using these flags. For example:

  • Train reactive policies with pushing and grasping (P+G Reactive); specify --method to be 'reactive', remove --push_rewards, remove --explore_rate_decay:

    python main.py --is_sim --method 'reactive' --experience_replay --save_visualizations
  • Train reactive policies with grasping-only (Grasping-only); similar arguments as P+G Reactive above, but add --grasp_only:

    python main.py --is_sim --method 'reactive' --experience_replay --grasp_only --save_visualizations
  • Train VPG policies without any rewards for pushing (VPG-noreward); similar arguments as regular VPG, but remove --push_rewards:

    python main.py --is_sim --experience_replay --explore_rate_decay --save_visualizations
  • Train shortsighted VPG policies with lower discount factors on future rewards (VPG-myopic); similar arguments as regular VPG, but set --future_reward_discount to 0.2:

    python main.py --is_sim --push_rewards --future_reward_discount 0.2 --experience_replay --explore_rate_decay --save_visualizations

To plot the performance of a session over training time, run the following:

python plot.py 'logs/YOUR-SESSION-DIRECTORY-NAME-HERE'

Solid lines indicate % grasp success rates (primary metric of performance) and dotted lines indicate % push-then-grasp success rates (secondary metric to measure quality of pushes) over training steps. By default, each point in the plot measures the average performance over the last 200 training steps. The range of the x-axis is from 0 to 2500 training steps. You can easily change these parameters at the top of plot.py.

To compare performance between different sessions, you can draw multiple plots at a time:

python plot.py 'logs/YOUR-SESSION-DIRECTORY-NAME-HERE' 'logs/ANOTHER-SESSION-DIRECTORY-NAME-HERE'

Evaluation

We provide a collection 11 test cases in simulation with adversarial clutter. Each test case consists of a configuration of 3 - 6 objects placed in the workspace in front of the robot. These configurations are manually engineered to reflect challenging picking scenarios, and remain exclusive from the training procedure. Across many of these test cases, objects are laid closely side by side, in positions and orientations that even an optimal grasping policy would have trouble successfully picking up any of the objects without de-cluttering first. As a sanity check, a single isolated object is additionally placed in the workspace separate from the configuration. This is just to ensure that all policies have been sufficiently trained prior to the benchmark (i.e. a policy is not ready if fails to grasp the isolated object).

The demo above runs our pre-trained model multiple times (x30) on a single test case. To test your own pre-trained model, simply change the location of --snapshot_file:

export CUDA_VISIBLE_DEVICES="0" && python3 main.py --is_sim --obj_mesh_dir 'objects/toys' --num_obj 10  --push_rewards --experience_replay --explore_rate_decay --load_snapshot --snapshot_file '/home/$USER/Downloads/snapshot.reinforcement.pth' --random_seed 1238 --is_testing --save_visualizations --test_preset_cases --test_preset_dir 'simulation/test-cases/' --max_test_trials 10

Data from each test case will be saved into a session directory in the logs folder. To report the average testing performance over a session, run the following:

python evaluate.py --session_directory 'logs/YOUR-SESSION-DIRECTORY-NAME-HERE' --method SPECIFY-METHOD --num_obj_complete N

where SPECIFY-METHOD can be reactive or reinforcement, depending on the architecture of your model.

--num_obj_complete N defines the number of objects that need to be picked in order to consider the task completed. For example, when evaluating our pre-trained model in the demo test case, N should be set to 6:

python evaluate.py --session_directory 'logs/YOUR-SESSION-DIRECTORY-NAME-HERE' --method 'reinforcement' --num_obj_complete 6

Average performance is measured with three metrics (for all metrics, higher is better):

  1. Average % completion rate over all test runs: measures the ability of the policy to finish the task by picking up at least N objects without failing consecutively for more than 10 attempts.
  2. Average % grasp success rate per completion.
  3. Average % action efficiency: describes how succinctly the policy is capable of finishing the task. See our paper for more details on how this is computed.

Creating Your Own Test Cases in Simulation

To design your own challenging test case:

  1. Open the simulation environment in V-REP (navigate to your V-REP directory and run ./vrep.sh). From the main menu, select File > Open scene..., and open the file visual-pushing-grasping/simulation/simulation.ttt.

  2. In another terminal window, navigate to this repository and run the following:

    python create.py
  3. In the V-REP window, use the V-REP toolbar (object shift/rotate) to move around objects to desired positions and orientations.

  4. In the terminal window type in the name of the text file for which to save the test case, then press enter.

  5. Try it out: run a trained model on the test case by running main.py just as in the demo, but with the flag --test_preset_file pointing to the location of your test case text file.

Running on a Real Robot (UR5)

The same code in this repository can be used to train on a real UR5 robot arm (tested with UR Software version 1.8). To communicate with later versions of UR software, several minor changes may be necessary in robot.py (e.g. functions like parse_tcp_state_data). Tested with Python 3.

Setting Up Camera System

The PrimeSense Camera can be used with the perception packages from the Berkeley Automation Lab.

Alternatively, the latest version of our system uses RGB-D data captured from an Intel® RealSense™ D415 Camera. We provide a lightweight C++ executable that streams data in real-time using librealsense SDK 2.0 via TCP. This enables you to connect the camera to an external computer and fetch RGB-D data remotely over the network while training. This can come in handy for many real robot setups. Of course, doing so is not required -- the entire system can also be run on the same computer.

Installation Instructions:

  1. Download and install librealsense SDK 2.0

  2. Navigate to visual-pushing-grasping/realsense and compile realsense.cpp:

    cd visual-pushing-grasping/realsense
    cmake .
    make
  3. Connect your RealSense camera with a USB 3.0 compliant cable (important: RealSense D400 series uses a USB-C cable, but still requires them to be 3.0 compliant to be able to stream RGB-D data).

  4. To start the TCP server and RGB-D streaming, run the following:

    ./realsense

Keep the executable running while calibrating or training with the real robot (instructions below). To test a python TCP client that fetches RGB-D data from the active TCP server, run the following:

cd visual-pushing-grasping/real
python capture.py

Calibrating Camera Extrinsics

We provide a simple calibration script calibration_ros.py to estimate camera extrinsics with respect to robot base coordinates. In this project, we are dealing with an eye-on-base calibration (see more explanation of eye-on-base vs eye-on-hand here). To do so, the script move the robot to several random positions and orientations within the workspace.

We are using the PrimeSense Carmine 1.08 for this project. If you are using other cameras which need calibration for the depth scale (e.g. Intel RealSense D415, you may refer the calibration method provided by Andy Zeng here.

Training

To train on the real robot, simply run:

python main.py --tcp_host_ip 'XXX.XXX.X.XXX' --tcp_port 30002 --push_rewards --experience_replay --explore_rate_decay --save_visualizations

where XXX.XXX.X.XXX is the network IP address of your UR5 robot controller.

Additional Tools

  • Use touch.py to test calibrated camera extrinsics -- provides a UI where the user can click a point on the RGB-D image, and the robot moves its end-effector to the 3D location of that point
  • Use debug.py to test robot communication and primitive actions
