This Project is a DIY DCC Decoder for model railroad locomotives which aims to be cost effective.
- DCC digital signal decoding
- Motor load/speed control
- 4 Outputs switched by transistors with configurable optional PWM
- 6 additional GPIO for lighter loads or custom applications
- Programmable on programming track
- CV Function Mapping
- Board size of 25x20 mm
- Pre-compiled software available and flashable via USB using your regular file explorer
- Debugging via Serial Wire Debug or optional logging via stdio and UART/USB serial port
The documentation provides an overview of the steps required to use the decoder. It also tries to give an insight into how the hardware and software works.
- Software - MIT license
- Hardware - CERN Open Hardware Licence Version 2 - Permissive
- LICENSE

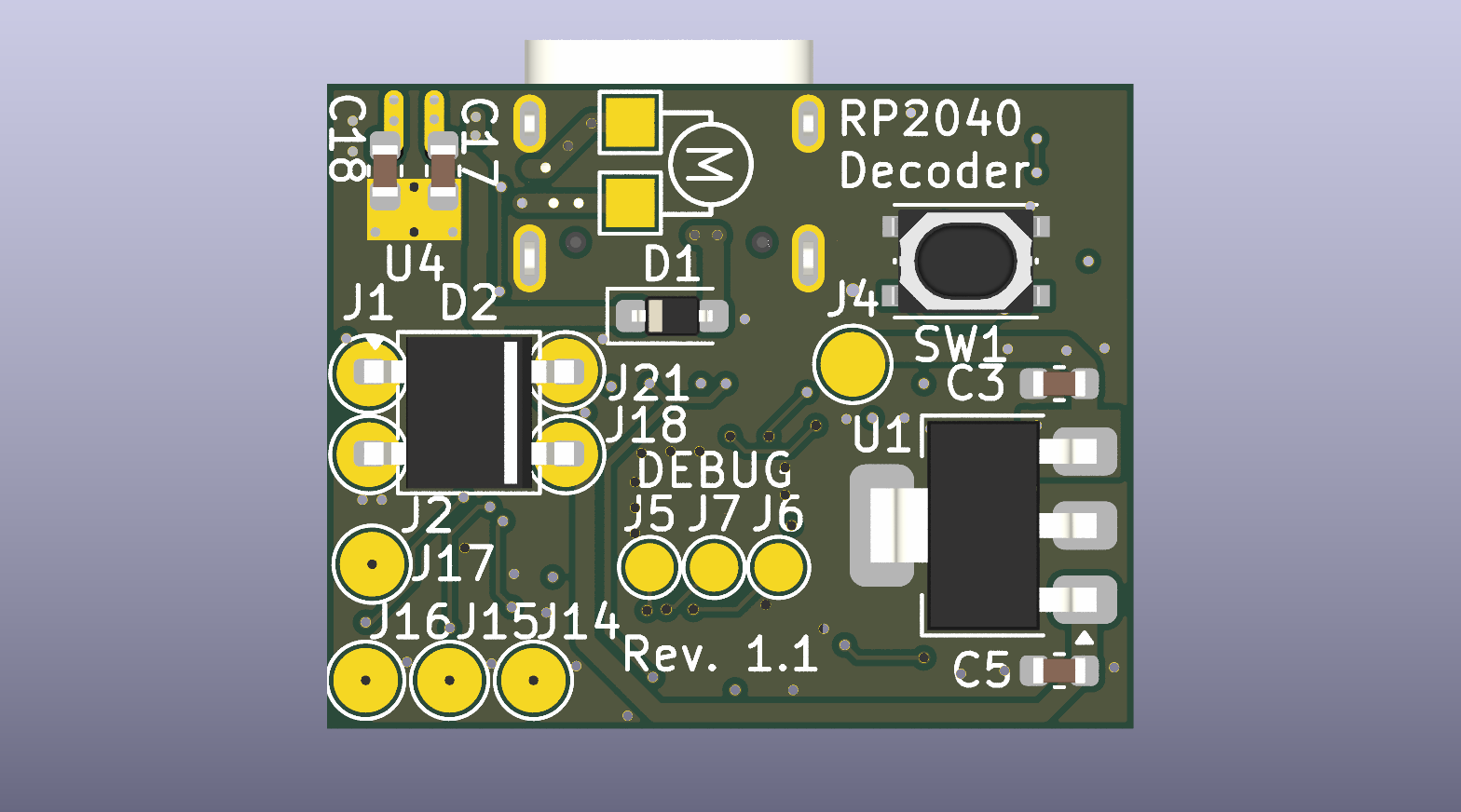

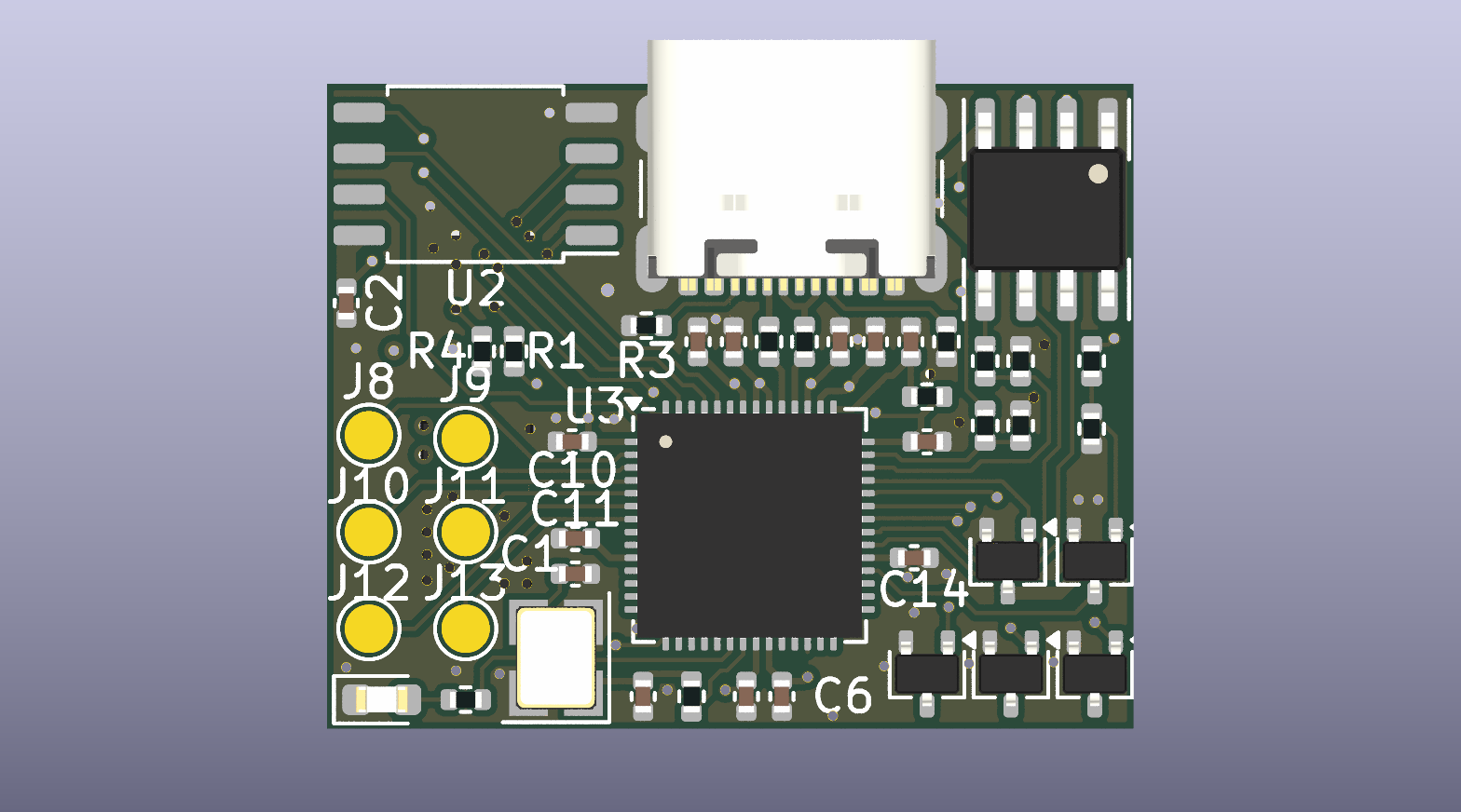

USB hardware version

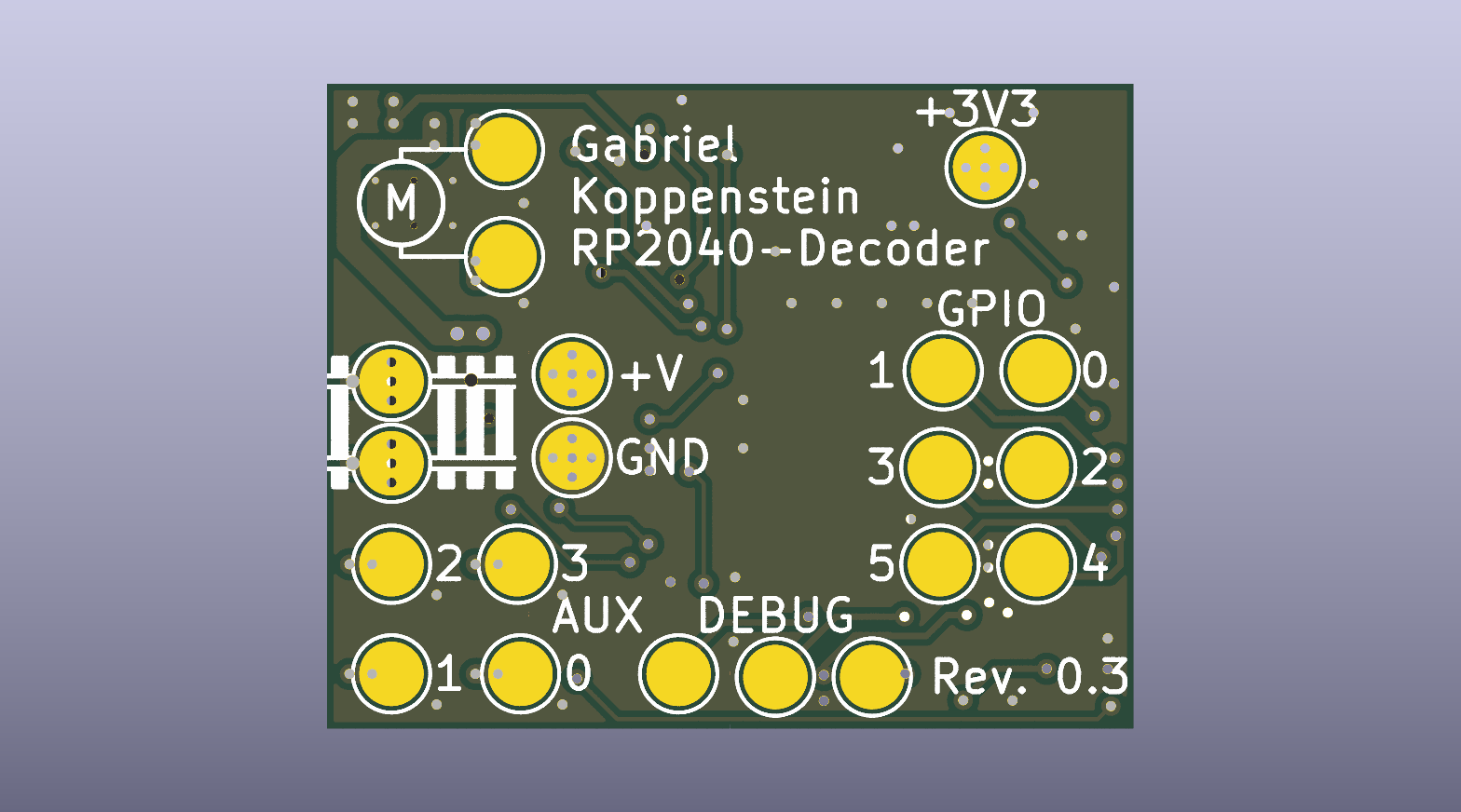

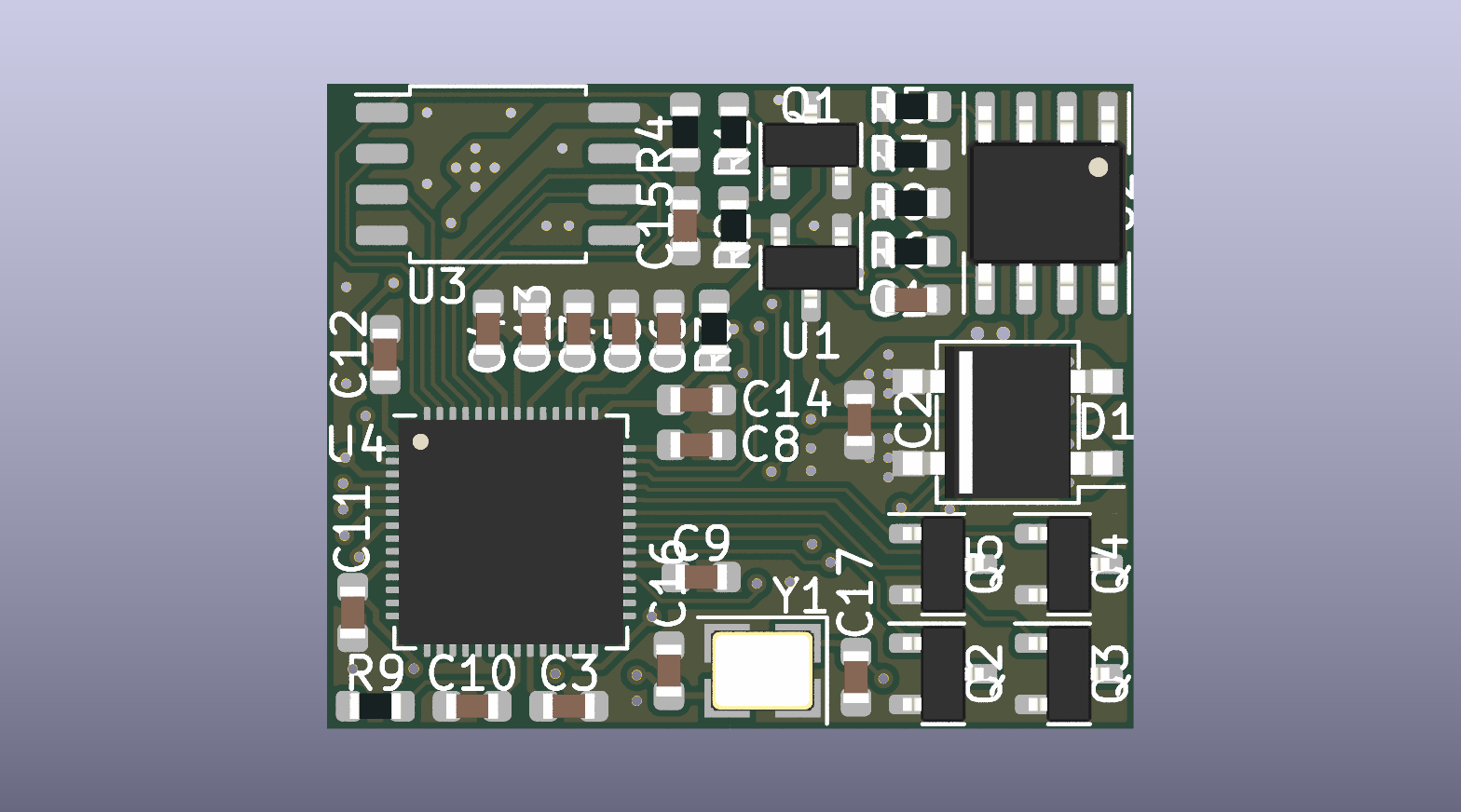

Legacy hardware version
