Programming Assignment 2: Minesweeper Game

Before You Begin

• Read this document carefully.
• Double check the timeline for this PA.
• We expect a comprenhensive use of exception handling and user input validation.

Learning Objective:

• To assess students' master of Python basics, functions, lists, tuples, and dictionaries.
• To assess students' mastery of abstractions (implemented using functions).
• To assess students' understanding and use of black-box/white-box testing.

Learning outcomes:

1. Read and write code in Python,
2. Analyze a problem and create a computer program to solve it,
3. Use top-down design and abstraction to write clean, readable, fixable code,

Problem Description

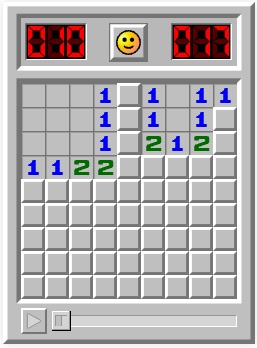

You will implement a console version of the traditional MS-Windows® Minesweeper. If you never played, here is an online version

The game starts with a board ($9\times 9$ for beginners but can be any size) in which each tile (cell) represents a space in the terrain.

Your goal is to find a given number of mines without stepping into one. You achieve this by clicking on one of these tiles. If the tile didn't have a mine, it will show you a number representing how many mines are around it.

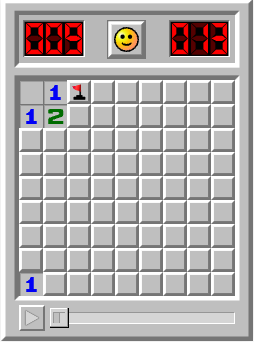

If you think there is a mine on a particular tile, you can mark it (flag it) as suspicious.

Of course, if you step on a tile that has a mine, well... GAME OVER.

Your goal is to have stepped into (visited) all but the mines, and have the mines flagged.

Functions pa2.py

In this file you implement the funtions to run the program, but not the main program.

The main map (board) is implemented as a zero-indexed 2D list, but what you store there is totally up to you. Keep in mind, we will assess whether you used the data structures we discussed so far efficiently.

• initalize_board_random

  • Generates a new board with height rows and width columns, and randomly places mine_count mines on it.
  • The minimum board size is 4x4.
  • The board cannot have more than 26 columns and more than 50 rows, and there must be at least 5 mines in the board
  • Parameters:
    • board_height: number of rows. Rows will be input from 1 to N
    • board_width: number of cols. Colls will be input from A to Z
    • mine_count: the number of mines to randomly place.
    • seed: to initialize the random generator. _If you don't set this before the first use of random, you may not pass all tests. Just use it once!
  • Returns:
    • A zero-indexed 2D list, indexed by row,column.

• initalize_board_file

  • Generates a new board with height rows and width columns, and places the mines from the coordinates listed in the file.
  • The board characteristics are the same from initialize_board_random.
  • Parameters:
    • board_height: number of rows. Rows will be input from 1 to N
    • board_width: number of cols. Colls will be input from A to Z
    • filename: must be a utf-8 encoded text file with one mine coordinate per line in the format (x,y). Spaces/tabs may be added and should not impact the outcome. If the line contains anything else but a coordinate in the formate described, just ignore that line. x represents a row number (1-N) and y a column (A-Z). You need to check the integrity of the file (i.e., that the file makes sense for your board). Invalid entries are just ignored.
  • Returns:
    • A zero-indexed 2D list, indexed by row,column.

• validate_board_dimensions

  • This function validates that the argument is a 2D list and validates whether it is a valid board or not. It DOES NOT LOOK at the content.
  • When somenthing is not right, it returns a ValueError with an appropiate description.
  • Returns True when all validations passed (otherwise an exception was raised.)

• display_board

  • Returns a string to print the board using the following format:

  |---| A | B | C | D |...
  |001| o | 1 | o |   |...
  |002| o | @ | o | o |...
  |003| o | o | 2 | o |...
  ...


  • A number (1-8) means number of mines in the neighbors. The user visited that cell.
  • A space means that in the neighbors there are NO mines. The user visited that cell.
  • A o (lowercase letter o) means that the cell was NOT visited and not marked.
  • A @ means that the user marked that place as a possible bomb.
  • Return:
    • the string with the representation described.

• visit

  • The user visits (steps into) that cell (tile).
  • If there is no mine, then you need to take the actions to mark that cell as visited.
  • If there is a mine, rase a RuntimeError with message "BOOM! GAME OVER!".
  • If the cell was marked as possible mine, unmark it and visit it.
  • If the cell was previously visited, then raise a ValueError.
  • Params:
    • board: is the 2D board list.
    • row: an integer between 1 and N (the number of rows)
    • col: a character between A-Z.

• change_mark

  • The user marks/unmarks this cell as a possible mine.
    • The user does NOT visit this cell by marking it.
    • If the cell is marked, then this unmarks it. If it is not marked, it marks it.
    • If the cell was visited, then this raises a ValueError exception.
  • Params:
    • board: is the 2D board list.
    • row: an integer between 1 and N (the number of rows)
    • col: a character between A-Z.

• validate_game

  • Validates the Game.
    • When the board is all visited and all not visited cells are marked, we validate whether the user won or not.
    • If there are unvisited and unmarked cells, raise RuntimeError with "User Defeated" message.
    • If all cells are marked or visited, check that all marked cells have a mine.
    • When there are marked cells without mines, raise RuntimeError 'USER LOST-Not a mine at x,y.' (x,y must be 1-N, A-Z accordingly)
    • When all the marked cells contain mines, return "YOU WIN!!!"

• actions_from_file

  • Reads actions from file (utf-8 encoded).
    • Each action is represented in 2 lines.
    • The first line will either say M (for mark) or V for visit.
    • The nest line will have the coordinate (same format as initialize.)
    • If the action is not M or V, raise a RuntimeError. The coordinate handling is as described for initialization.
    • The file is expected to have (Action\nCoord)* if the format is not correct, raise a RuntimeError.

Use of Abstraction

You were given with the 'interface' of the program. The set of functions that allows us to generalize (up to a point) this application.

However, you can (and should) add more functions to make your program more readable, simpler, less redundant. This is also going to be assessed during the code review.

Main Program main.py

You must implement your main program to run the game as you like. We will not test this automatically but during the code review.

Coordinates

The user will use numbers (1-N) to refer to the rows of the map, and capital letters (A-Z) to refer to the columns of the map. In such a way that (1,A) is the top-left and (9,I) is the bottom-right tile in a $9\times9$ map. Note that your functions (implemented on pa2.py) will receive these type of coordinates, and your code must handle them appropiatelly.

Example main program:

• Initialize the board with user inputs.
• Give the user the options to:
  • step into a tile (visit)
  • Flag/unflag (mark) a tile
  • Check for victory (beware that if it is not complete, the user will lose. )

Tests user_tests.py

This file is provided for you to write pytest functions. You will be provided with a function to get access to our solution module for you to conduct tests.

More information will come during Testing module in the lectures and how to use this with ADTG.

Files

• Three files are provided as samples:
• mines1.txt: coordinate files with valid and invalid inputs. For a $9\times9$ board.
• mines2.txt: coordinate files with valid coordinate inputs and invalid inputs (all starting with #). For a $4\times4$ board.
• actions2.txt: action files for the mines2.txt map for $4\times4$ board. This outcome on the user wining the game.

Example Interaction:

This is just an example of printing the map and iterating over the mines2.txt map. The only output that you must match is the map.

Invalid coordinate [#4x4 1-4, ABCD, 5 mines]
Invalid coordinate [#]
Invalid coordinate [#@@@1]
Invalid coordinate [#@@31]
Invalid coordinate [#221.]
Invalid coordinate [#....]
|---| A | B | C | D |
|001| o | o | o | o |
|002| o | o | o | o |
|003| o | o | o | o |
|004| o | o | o | o |

Action[V] -- Coord Line: [(1,D)]
Action[V] -- Coord Line: [(2,C)]
Action[V] -- Coord Line: [(2,D)]
Action[M] -- Coord Line: [(1,A)]
Action[M] -- Coord Line: [(1,B)]
Action[M] -- Coord Line: [(1,C)]
Action[M] -- Coord Line: [(2,A)]
Action[M] -- Coord Line: [(2,B)]
Action[V] -- Coord Line: [(3,A)]
Action[V] -- Coord Line: [(3,B)]
Action[V] -- Coord Line: [(3,C)]
Action[V] -- Coord Line: [(3,D)]
Action[V] -- Coord Line: [(4,A)]
Action[V] -- Coord Line: [(4,B)]
Action[V] -- Coord Line: [(4,C)]
Action[V] -- Coord Line: [(4,D)]
|---| A | B | C | D |
|001| @ | @ | @ | 1 |
|002| @ | @ | 3 | 1 |
|003| 2 | 2 | 1 |   |
|004|   |   |   |   |

YOU WIN!!!

TIMELINE

1. You recived this Programming Assigment on October 7th.
2. Validating your Tests
   • Use ADTG to run your test cases against your solution and our solution in the platfom.
   • This will be available from October 11th 8am. to October 18th, 7:59am.
   • You will require 5 tokens to run the test cases.
   • The more test cases you write, the more thoroughly your will validating your implementation and your understanding.
3. Automatic grading
   • ADTG will use our test cases to validate your code.
   • This will be available from October 18th 8am until the submission deadline.
   • You will require 50 tokens to grade this assessment.
4. Submission deadline is October 20th, 11:59pm..
   • After the deadline, the grader will output a zero for your grade.

Note: the grading in advance for this assessment is limited! Just one day and the weekend. We may not be available during the weekend. One of the goals of this assessment is to assess how comprenhensive your testing is. By running your tests again our solution, you will have the tools to identify question points, issues on your program and fix it.

HINTS

• Carefully think the solution for your assigment.
• The minimum map size is $4\times4$ which is manegeable to run on paper (run one example).
  • You have one example already!

Restrictions

• Only random and re modules are allowed.
• You will be using pytest to desing and implement your test cases.

Submission:

• Your functions must be implemented on pa2.py
• Your main program in main,py. We'll review this during Code Review
• Your tests must be implemented in user_tests.py.
• No other files will be uploaded to the grader.

Rubric:

• Automatic Testing counts for $70%$ of the assignment.
• Code Review counts for $30%$ of the assignment.
  • This includes (but not limited to):
    • correct use of data structures, constrol statements, variable names, use of comments, and programming style.
    • correct use of abstraction (encapsulating code in functions to reuse)
    • appropiate comments
    • correct use of typehints
